ELECTROMAGNETICS

ELECTROMAGNETIC SIMULATION TECHNOLOGY INCLUDING CST STUDIO SUITE TO GUIDE DESIGN DECISIONS AND IMPROVE PRODUCT PERFORMANCE AND QUALITY



Electromagnetics simulation discipline includes technology for simulation of electromagnetic waves propagation and signal strength related to design and positioning of devices for communication and detection.  Technology from CST Studio Suite is connected to the 3DEXPERIENCE platform to allow a wide range of high-frequency and low-frequency scenarios to be efficiently simulated related to electromagnetic performance and device placement.

SIMULIA Electromagnetic Simulation Products

Electromagnetics on the 3DEXPERIENCE Platform

EM simulation software is a game changer when it comes to reducing the time and cost of bringing a product to market, not just in the high-tech industries of electronics and communication.

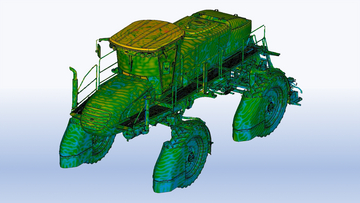

3DEXPERIENCE Works Electromagnetics

Electromagnetics Engineer is a high-performance 3D electromagnetic simulation solution. Powered by the industry proven CST Studio Suite, this cloud-enabled role delivers fast, effective simulation and design guidance of electro-mechanical devices, PCB’s, antennas in a truly multi-physics environment.

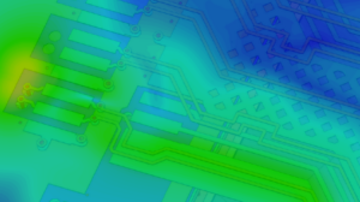

CST Studio Suite

CST Studio Suite is a high-performance 3D EM analysis software package for designing, analyzing and optimizing EM components and systems.

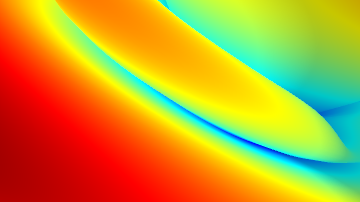

Antenna Magus

Antenna Magus is a software tool for the acceleration of the antenna design and modeling process. Validated antenna models can be exported to CST Studio Suite from a huge antenna database of over 350 antennas.

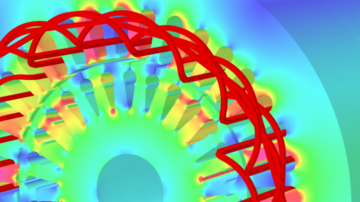

Opera

Opera Simulation Software is a Finite Element Analysis software suite which, with its strength in low frequency simulation, is extremely useful for the design of magnets, electric motors and other electrical machines.

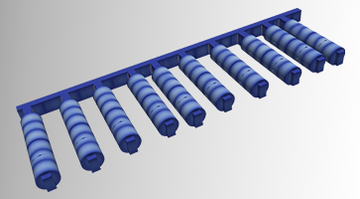

Fest3D

Fest3D is a software tool capable of analyzing complex passive microwave components based on waveguide and coaxial cavity technology in very short computational times with high accuracy compared to mode-matching methods.

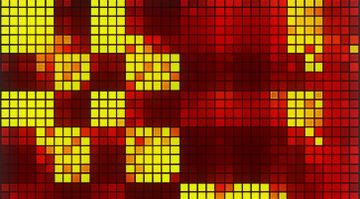

IdEM

IdEM is a user friendly tool for the generation of SPICE ready macromodels of electrical interconnect structures such as packages, connectors, via fields, discontinuities up to backplane links and complete power delivery networks.

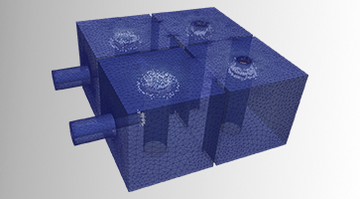

Spark3D

Spark3D is a unique simulation tool for determining the RF breakdown power level in a wide variety of passive devices, including cavities, waveguides, microstrip and antennas.
